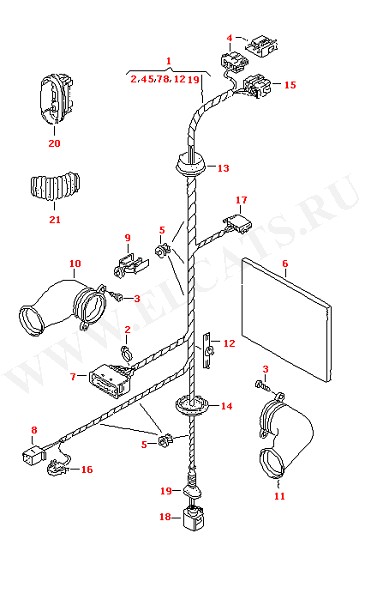

Оригинальный
номер |
Название |
Заказ |
| (12) |
4B0971848 |
cable holder hole/sheet metal thickness: 6MM |
|
| (14) |
1J0971913 |
grommet F 3B-WE118 145>> F 3B-WP099 623>> F 3B-WD080 965>> 36,7/4,5 |
|
| (15) |
4A0972242 |
rd. connector sleeve housing F >> 3B-WE118 144 F >> 3B-WP099 622 F >> 3B-WD080 964 use if required: wiring harness for interior 3 pin black/pink 4A0 972 244 |
|
| (15) |
3B0937713 |
flat contact housing with helper contact catch F 3B-WE118 145>> F 3B-WP099 623>> F 3B-WD080 965>> use if required: 4 pin black 3B0 937 714 |
|
| (15) |
4A0972244 |
rd. connector sleeve housing F >> 3B-WE118 144 F >> 3B-WP099 622 F >> 3B-WD080 964 3 pin black/blue |
|
| (15) |
3B0937714 |
flat contact housing with helper contact catch F 3B-WE118 145>> F 3B-WP099 623>> F 3B-WD080 965>> use if required: 4 pin black 3B0 937 714 |
|
| (16) |
1J0971972 |
flat connector housing loudspeaker F 3B-Y-000 001>> 2 pin |
|
| (16) |
893971632 |
flat contact housing entry light F 3B-WE118 145>> F 3B-WP099 623>> F 3B-WD080 965>> 2 pin |
|
| (4) |
4A0972986 |
rd. connector sleeve housing wiring harness for loudspeaker F >> 3B-V-025 000* 6 pin |
|
| (4) |
1J0937714B |
flat contact housing with helper contact catch to be used for: F 3B-V-025 001>>* wiring harness for loudspeaker 3 pin red white khaki grey |
|
| (5) |
1J0957818C |
cable tie hole/sheet metal thickness: 4,5X162 6,5 / 0,6-1,5 |
|
| (9) |
3B0971003B |
retainer F 3B-WE118 145>> F 3B-WP099 623>> F 3B-WD080 965>> |
|
| - |
1J0971843A |
cable holder hole/sheet metal thickness: 6,5X10/0,6-1,0 |
|
| 10 |
3B0971047 |
wiring conduit wiring harness for door right |
|
| 11 |
3B0971047A |
wiring conduit wiring harness for door left |
|
| 13 |
3B0971905 |
grommet wiring harness for door 36/8 |
|
| 14 |
3A0971913A |
grommet F >> 3B-WE118 144 F >> 3B-WP099 622 F >> 3B-WD080 964 35/10,5 |
|
| 16 |
3B0972702 |
flat contact housing with helper contact catch loudspeaker F >> 3B-X-600 000* 2 pin |
|
| 17 |
1J0972704 |
flat contact housing loudspeaker 4 pin |
|
| 18 |
1J0973713 |
flat contact housing door lock 6 pin |
|
| 19 |
443906102G |
grommet 13,5X19 |
|
| 20 |
8D0937545E |
bracket for connector housing b-pillar |
|
| 21 |
8D0959845E |
bellows with retaining frame door 37,5X78,5/40 rear |
|
| 3 |
N 90356502 |
oval head self-tapping screw fastening wiring conduit E4,2X9,5 |
|
| 4 |
1J0937713B |
flat contact housing with helper contact catch to be used for: F 3B-V-025 001>>* use if required: wiring harness for loudspeaker 3POLIG red white khaki grey 1J0 937 714 B |
|
| 6 |
447857991J |
intermediate layer 130X165 |
|
| 7 |
1J0959383B |
flat contact housing with gasket electronic control unit 18 pin |
|
| 8 |
1J0959869 |
flat contact housing switch for electric windows 5 pin |
|
| 9 |
3B0971003 |
retainer F >> 3B-WE118 144 F >> 3B-WP099 622 F >> 3B-WD080 964 flat connector housing flat connector housing 893 971 983 3B0 972 712 |
|
