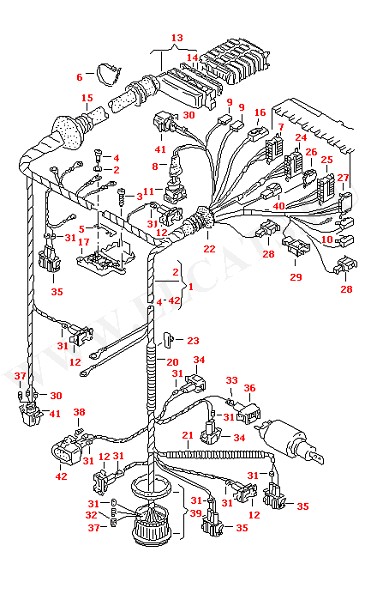

Оригинальный номер |
Название |
Заказ |
(17) |
3A0937501A |
fuse holder F 3A-SE090 001>>* F 3A-SB013 001>>* 2 pin |
|
(20) |
N 90773801 |
corrugated pipe in coils of 5m order unit 5 22 |
|
(33) |
357972842 |
plug 9,0 black |
|
(5) |
N 10251905 |
flat fuse 29/2x8 F 3A-SE090 001>>* F 3A-SB013 001>>* 80-natural col |
|
(9) |
1H0972702 |
flat contact housing switch pedal clutch switch brake pedal F 3A-TE050 001>>* F 3A-TB004 001>>* F 3A-TD050 001>>* 2 pin |
|
- |
3A1971501 |
retainer connecting part flat contact housing lhd 3A0 973 713 |
|
- |
3A2971501 |
retainer connecting part flat contact housing rhd 3A0 973 713 |
|
- |
N 90682601 |
corrugated pipe end piece F 3A-T-000 001>> 17 |
|
- |
028972335A |
clip connecting part injection pump 6X6X28 |
|
- |
3A0971845D |
retainer connecting part flat contact housing injection pump 8 pin |
|
- |
N 10311304 |
insulating tape 0,15X19X10000 |
|
10 |
701906231 |
flat contact housing connecting part potentiometer potentiometer hall sender 1 pin |
|
11 |
443906233 |
flat contact housing connecting part pressure regulator F >> 3A-SE090 000* F >> 3A-SB013 000* 3 pin |
|
12 |
037906240 |
flat contact housing connecting part temperature sensor suction pipe wastegate exhaust recirculation valve injector with: impulse sender 2 pin for: |
|
13 |
1H0906370J |
flat contact housing with gasket connecting part electronic control unit 68 pin |
|
14 |
1H0906375 |
gasket 16X105 |
|
15 |
357906376E |
protective cap 52/24/32 |
|
16 |
357915971C |
flat terminal pin housing connecter location: 1 pin Z1 |
|
17 |
281937505A |
fuse box without fuses F >> 3A-SE090 000* F >> 3A-SB013 000* |
|
2 |
N 0115562 |
washer F >> 3A-SE090 000* F >> 3A-SB013 000* 5,3X9,5X1 |
|
20 |
N 90773701 |
corrugated pipe in coils of 5m order unit 5 17 |
|
21 |
N 90635517 |
corrugated pipe in coils of 5m order unit 5 4,5 |
|
22 |
1H0971840 |
grommet 46/10,5 |
|
23 |
4B0971848 |
cable holder |
|
24 |
357971967 |
flat contact housing with helper contact catch connecter location: 12 pin G1 |
|
25 |
357971967A |
flat contact housing with helper contact catch connecter location: 12 pin G2 |
|
26 |
1J0972702 |
flat contact housing coupling piece wiring harness for dash panel wiring harness relay for models with radiator fan run-on 2 pin for: |
|
27 |
1J0972704 |
flat contact housing coupling piece steering col. combi switch 4 pin |
|
28 |
191972711 |
flat connector housing connecting part instrument housing air condit. 1 pin |
|
29 |
191972712 |
flat connector housing air condit. 2 pin SDS |
|
3 |
N 0139681 |
oval head panel screw F >> 3A-SE090 000* F >> 3A-SB013 000* ST4,8X13-C |
|
30 |
357972740D |
single wiring seal for wire cross section: 3,9X7,8 grey 0,5-1,0 |
|
31 |
357972741 |
single wiring seal for wire cross section: 5,6X7,8 blue 1,0 |
|
32 |
357972742B |
single wiring seal for wire cross section: 9,0X7,8 red 2,5 |
|
33 |
357972742C |
single wiring seal for wire cross section: 9,0X7,8 green 4,0 |
|
34 |
357972752 |
flat contact housing connecting part switches on transmission alternator 2 pin |
|
35 |
357972753 |
flat contact housing connecting part speed sender distance sensor heater relay 3 pin |
|
36 |
357972771 |
flat contact housing connecting part starter 1 pin |
|
37 |
4B0972840 |
plug 4,0X7,8 white |
|
38 |
357972841 |
plug 5,6X7,8 |
|
39 |
3A0973103 |
flat connector housing 24 pin |
|
4 |
N 01412811 |
fillister hd. bolt F >> 3A-SE090 000* F >> 3A-SB013 000* M5X8 |
|
40 |
1J0973332 |
flat contact housing connecting part coupling piece outer temperature sensor 2 pin outer |
|
41 |
3A0973713 |
flat contact housing connecting part air volume meter 6 pin |
|
42 |
3A0973734 |
flat contact housing connecting part injection pump 8 pin |
|
5 |
N 0171251 |
fuse F >> 3A-SE090 000* F >> 3A-SB013 000* B50 |
|
6 |
N 0209022 |
cable tie 6X246 |
|
7 |
357903968 |
flat contact housing with helper contact catch connecter location: 10 pin F |
|
8 |
701905142 |
protective cap 16X6,5 |
|
9 |
443906231 |
flat terminal pin housing switch pedal clutch switch brake pedal F >> 3A-TE050 000* F >> 3A-TB004 000* F >> 3A-TD050 000* 2 pin |
|
