Оригинальный
номер |
Название |
Заказ |
| (1) |
357971131A |

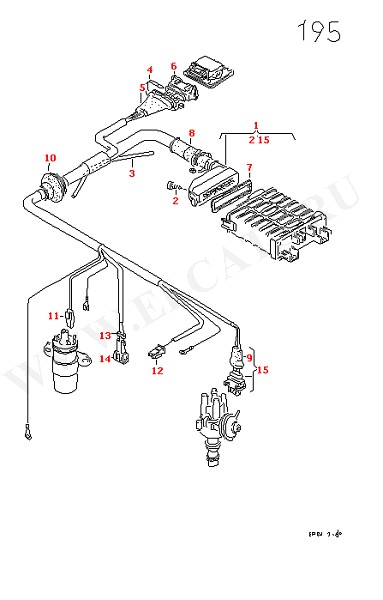

wiring harness for transistorized ignition system F >> 31-L-400 000 |
|
| (1) |
357971132A |
wiring harness for transistorized ignition system F >> 31-L-400 000 lhd |
|
| (1) |
358971132A |
wiring harness for transistorized ignition system F >> 31-L-400 000 rhd |
|
| (1) |
357971132B |
wiring harness for transistorized ignition system F 31-M-000 001>> lhd |
|
| (10) |
251971905C |
grommet 52X16 |
|
| (14) |
357972763 |
flat connector housing connecting part engine F 31-M-000 001>> 3 pin |
|
| (15) |
443906236 |
flat contact housing 3 pin |
|
| (5) |
037906102A |
protective cap flat terminal pin housing 7 pin |
|
| (9) |
191906102 |
protective cap |
|
| 10 |
357971905A |
grommet 52/16 |
|
| 11 |
111971921B |
flat terminal pin housing 1 pin |
|
| 12 |
191971922 |
flat terminal pin housing connecting part engine 1 pin NTC |
|
| 13 |
357972741A |
single wiring seal for wire cross section: 5,6X7,8 red 1,5 |
|
| 14 |
357972762 |
flat connector housing connecting part engine F >> 31-L-400 000 F 31-M-000 001>> 2 pin |
|
| 2 |
N 0139537 |
oval head panel screw ST2,5X9,5 |
|
| 3 |
N 0201391 |
tube in coils of 5m order unit 5 4X1 |
|
| 4 |
N 90666101 |
cable tie hole/sheet metal thickness: 4,5X200 6,5 / 0,3-3 |
|
| 6 |
071906233 |
flat contact housing 7 pin |
|
| 7 |
871906375A |
gasket 16X50 |
|
| 8 |
191906376A |
protective cap 20,5X11 |
|
