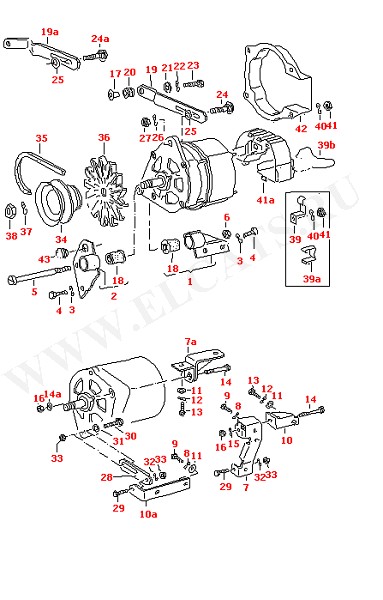

Оригинальный
номер |
Название |
Заказ |
| (28) |
068903251H |
angled bracket also use: 034 903 555 B |
|
| (34) |
036903119B |
v-belt pulley for alternator: 18 |
|
| (34) |
049903119L |
v-belt pulley for alternator: 1-3,6,8,11,12, 14,15,21,25,27 |
|
| (35) |
052903137F |
v-belt 9,5X675MM |
|
| (35) |
068903137Q |
v-belt 9,5X735MM |
|
| (36) |
036903171A |
fan wheel for alternator: 7A,16,18,28 |
|
| (39B) |
036903121A |
spring shackle for alternator: MOTOROLA 26,28 |
|
| - |
034903555B |
bolt |
|
| 1 |
049903103 |
retainer |
|
| 10 |
068903147 |
bracket for alternator |
|
| 11 |
N 01152520 |
washer A8,4X16X1,6 |
|
| 12 |
N 0122293 |
spring washer A8X15X0,5 |
|
| 13 |
N 01023911 |
hexagonal head bolt M8X18 |
|
| 14 |
N 0103883 |
hexagonal head bolt M8X90 |
|
| 14A |
N 01152520 |
washer A8,4X16X1,6 |
|
| 15 |
N 0122293 |
spring washer A8X15X0,5 |
|
| 16 |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| 17 |
441903127 |
bearing |
|
| 18 |
056903147A |
damper bush |
|
| 19 |
056903253A |
angled bracket |
|
| 19A |
049903253 |
angled bracket |
|
| 2 |
049903105A |
retainer |
|
| 20 |
059903263A |
rubber mounting |
|
| 21 |
059903265A |
washer |
|
| 22 |
N 01224110 |
spring washer B8X15X0,8 |
|
| 23 |
N 01024416 |
hexagonal head bolt M8X30 |
|
| 24 |
059903285 |
flat round head bolt M8X25 |
|
| 24A |
049903285 |
flat round head bolt M8X70 |
|
| 25 |
N 0116961 |
washer B8,1X24X1,5 |
|
| 26 |
N 01224110 |
spring washer B8X15X0,8 |
|
| 27 |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| 29 |
N 01024016 |
hexagonal head bolt M8X20 |
|
| 3 |
N 01224110 |
spring washer B8X15X0,8 |
|
| 30 |
059903285 |
flat round head bolt M8X25 |
|
| 31 |
N 0116961 |
washer B8,1X24X1,5 |
|
| 32 |
N 0122293 |
spring washer A8X15X0,5 |
|
| 33 |
N 0110088 |
hexagonal nut M8 |
|
| 35 |
050903137 |
v-belt 9,5X950MM |
|
| 36 |
068903171 |
fan wheel for alternator: 1-3,6,8,11,12, 14,15,21,25,27 |
|
| 37 |
N 0122333 |
spring washer B14X28X1,6 |
|
| 38 |
N 0111135 |
hexagonal nut BM14X1,5 |
|
| 39 |
056903121 |
retainer for alternator: 1-7,9-22 |
|
| 39B |
036903121 |
spring shackle for alternator: BOSCH 25,27 |
|
| 4 |
N 01023911 |
hexagonal head bolt M8X18 |
|
| 40 |
N 0122253 |
spring washer B5X11X0,5 |
|
| 41 |
N 01100517 |
hexagonal nut M5 |
|
| 42 |
035903193D |
intake cover |
|
| 43 |
049109273 |
plug |
|
| 5 |
N 0447211 |
allen key head bolt M8X125 |
|
| 6 |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| 7 |
068903141 |
bracket for alternator |
|
| 8 |
N 01224110 |
spring washer B8X15X0,8 |
|
| 9 |
N 01023911 |
hexagonal head bolt M8X18 |
|
