Оригинальный
номер |
Название |
Заказ |
|
441857003A 3VY |
platinum -PN |
|
|
441857046B 1KY |
nautic -PF |
|
|
441857046B 5AY |
graphite -PM,PP |
|
|
441857003A 8RW |
travertine (beige) -PK |
|
|
441857003A 5AY |
graphite -PM,PP |
|
|
441857046B 3VY |
platinum -PN |
|
|
441857003A 1KY |
nautic -PF |
|
|
441857003B 8RW |
travertine (beige) -PK |
|
|
441857003B 5AY |
graphite -PP,PM |
|
|
441857003B 3VY |
platinum -PN |
|
|
441857003B 1KY |
nautic -PF |
|

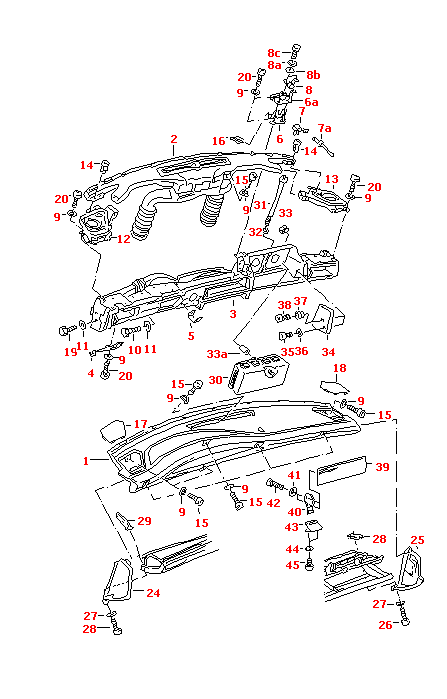

| (1) |
441857003A |
dashboard for models with airbag (passenger side) upper |
|
| (1) |
441857003B |
dashboard upper |
|
| (2) |
441857067A |
air duct |
|
| (3) |
441857099G |
carrier dashboard for models with airbag (passenger side) |
|
| (34) |
441880531 |
shield for airbag (passenger side) left |
|
| (40) |
441880544A |
locking hook for models with airbag (passenger side) right |
|
| (43) |
441880540A |
retaining bracket for models with airbag (passenger side) right |
|
| 10 |
N 01024022 |
bolt, hexagon head self-locking M8X20MK |
|
| 11 |
N 01152520 |
washer A8,4X16X1,6 |
|
| 12 |
441035413 |
loudspeaker frame left |
|
| 13 |
441035414 |
loudspeaker frame right |
|
| 14 |
447035418 |
clip |
|
| 15 |
N 0147412 |
allen key head bolt M5X15 |
|
| 16 |
N 90356203 |
snap nut M5X17X17 |
|
| 19 |
N 0102935 |
hexagonal head bolt M8X16 |
|
| 20 |
N 0147412 |
allen key head bolt M5X15 |
|
| 25 |
441857046B |
cover cap right |
|
| 26 |
N 0447282 |
allen key head bolt M5X20 |
|
| 27 |
N 0122224 |
spring washer A5X10X0,5 |
|
| 28 |
N 90356203 |
snap nut M5X17X17 |
|
| 3 |
441857099F |
carrier dashboard |
|
| 30 |
441880203 |
airbag unit (passenger side) ** caution! dangerous cargo ** ** only order for ** ** immediate installation ** see workshop manual |
|
| 31 |
N 10035903 |
allen key head bolt M10X140 |
|
| 32 |
N 0115608 |
washer 10,5X18X1,6 |
|
| 33 |
N 0211761 |
hexagonal nut M6 |
|
| 33A |
441880815A |
spacer sleeve |
|
| 34 |
441880532 |
shield for airbag (passenger side) right |
|
| 35 |
N 90455503 |
allen key head bolt M5X9 |
|
| 36 |
N 0115122 |
washer 5,5X10X1 |
|
| 37 |
441880815 |
spacer sleeve for models with airbag (passenger side) |
|
| 38 |
N 90455603 |
allen key head bolt M5X15 |
|
| 4 |
441857150 |
angle left |
|
| 40 |
441880543A |
locking hook for models with airbag (passenger side) left |
|
| 41 |
N 0122224 |
spring washer A5X10X0,5 |
|
| 42 |
N 01412913 |
fill. hd. bolt, self locking M5X10 |
|
| 43 |
441880539A |
retaining bracket for models with airbag (passenger side) left |
|
| 44 |
N 01152318 |
washer A5,3X10X1 |
|
| 45 |
N 0147412 |
allen key head bolt M5X15 |
|
| 5 |
441857155B |
angle |
|
| 6 |
441857285C |
retainer |
|
| 6A |
441857285D |
retainer for models with airbag (passenger side) |
|
| 7 |
441857340 |
clips |
|
| 7A |
N 90576301 |
pop-rivet A4X9X8X1,2 |
|
| 8 |
441857340A |
clips for models with airbag (passenger side) |
|
| 8A |
N 0116653 |
washer 5,3X15X1,6 |
|
| 8B |
N 0122283 |
spring washer B8X17X0,8 |
|
| 8C |
N 90455503 |
allen key head bolt M5X9 |
|
| 9 |
N 0122224 |
spring washer A5X10X0,5 |
|
