Оригинальный
номер |
Название |
Заказ |
| (1) |

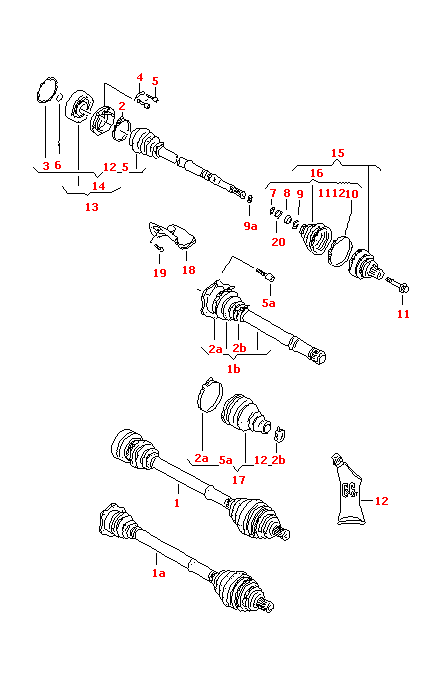

4A0407451DX |
drive shaft with constant velocity joints for manual gearbox left |
|
| (1) |
4A0407272DD |
drive shaft with constant velocity joints for manual gearbox right |
|
| (1) |
4A0407452GX |
drive shaft with constant velocity joints for manual gearbox right |
|
| (18) |
4A0407720 |
shield right |
|
| - |
N 90405002 |
allen key head bolt (combi) M8X38 |
|
| 1 |
4A0407271CT |
drive shaft with constant velocity joints for manual gearbox left |
|
| 10 |
N 90442701 |
hose clip 107X9X0,6 |
|
| 11 |
4A0407643A |
shouldered bolt M16X1,5X77 |
|
| 12 |
G 000633 |
high temperature grease 120G |
|
| 13 |
431498103C |
constant velocity joint with boot, attachment parts and grease inner |
|
| 14 |
443498201B |
joint protective boot with assembly items and grease inner |
|
| 15 |
4A0498099 |
wheel shaft, outer with joint, rotor and assembly parts |
|
| 16 |
441498203A |
joint protective boot with assembly items and grease outer |
|
| 18 |
4A0407719A |
shield left |
|
| 19 |
N 90415403 |
allen key head bolt (combi) M8X22-Z1 |
|
| 2 |
803407292 |
hose clip 70MM |
|
| 20 |
441407295 |
thrust ring |
|
| 3 |
8D0407309A |
sealing washer 94MM |
|
| 4 |
443407357 |
spacer plate |
|
| 5 |
N 90668201 |
bolt, with multi-spilne socket head M10X48 |
|
| 6 |
N 0123741 |
securing ring 28X1,5 |
|
| 7 |
441407287 |
concave spring washer |
|
| 8 |
441407293 |
terminal 33 |
|
| 9 |
441407297 |
securing ring outer |
|
