Оригинальный
номер |
Название |
Заказ |
|
4A9867434 01C |
satin black -03,05,07 |
|
|
4A9863537A 01C |
satin black -03,05,07 |
|
|
4A9863527 01C |
satin black -03,05,07 |
|
|
4A9863716 3VJ |
anthracite -03,05,07 |
|
|
4A9863882A BGN |
anthracite |
|
|
4A9863527A 01C |
satin black |
|
|
4A9867433 01C |
satin black -03,05,07 |
|
|
4A9863544A 3VJ |
anthracite -03,05,07 |
|
|
4A9863913A 3VJ |
anthracite -03,05,07 |
|
|
4A9863914A 3VJ |
anthracite -03,05,07 |
|
|
4A9863553 8RZ |
anthracite -03,05,07 |
|
|
4A9861587 01C |
satin black -03,05,07 |
|
|
4A9863881 BGN |
anthracite |
|
|
4A9863715 3VJ |
anthracite -03,05,07 |
|
|
4A9863463E 3VJ |
anthracite -03,05,07 |
|
|
4A9863462A 3VJ |
anthracite -03-05,07 |
|
|
4A9867433A 9XB |
anthracite -03,05,07 |
|
|
4A9863467 3VJ |
anthracite -03,05,07 |
|
|
4A9863538A 01C |
satin black -03,05,07 |
|
|
4A9863469 3VJ |
anthracite -03,05,07 |
|
|
4A9867434A 9XB |
anthracite -03,05,07 |
|

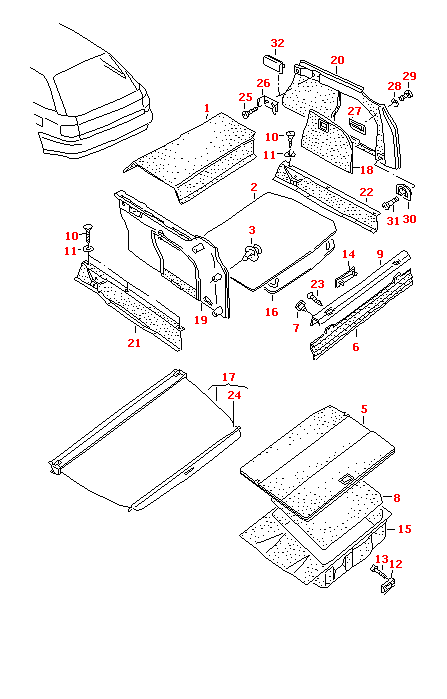

| (16) |
4A5863546A |
cover for spare wheel well HARTFASERPL. |
|
| (18) |
4A9863715 |
cover luggage boot trim left |
|
| (26) |
4A9867433 |
mounting folding cover for boot left |
|
| (27) |
4A9863538A |
bearing bracket right |
|
| (32) |
4A9867434A |
trim folding cover for boot right |
|
| + |
823863203 01C |
satin black |
|
| - |
443863562 |
distance piece for temporary spare wheel |
|
| - |
4A9861587 |
collar |
|
| 1 |
4A9863462A |
luggage comp. floor covering front |
|
| 10 |
N 0140872 |
oval hd. csk. self-tapp. screw ST3,5X16-C |
|
| 11 |
N 0115227 |
washer A4,3X9X0,8 |
|
| 12 |
4A9863527 |
shelf for model with load platform |
|
| 13 |
N 0147053 |
allen key head bolt M6X25 |
|
| 14 |
4A9863527A |
trim |
|
| 15 |
4A9863544A |
trim for spare wheel well |
|
| 16 |
4A5863546B |
cover for spare wheel well 215/60 ZR15 |
|
| 17 |
4A9863553 |
luggage compartment cover (roller-type) for vehicles with net partition |
|
| 18 |
4A9863716 |
cover luggage boot trim right |
|
| 19 |
4A9863881 |
luggage boot trim rework if necessary also use: left |
|
| 2 |
4A9863463E |
luggage comp. floor covering rear |
|
| 20 |
4A9863882A |
luggage boot trim right |
|
| 21 |
4A9863913A |
luggage boot trim for vehicles with seat bench installation facing towards rear of vehicle left lower |
|
| 22 |
4A9863914A |
luggage boot trim for vehicles with seat bench installation facing towards rear of vehicle right lower |
|
| 23 |
N 0140872 |
oval hd. csk. self-tapp. screw ST3,5X16-C |
|
| 24 |
4A9863581 |
tube luggage compartment cover (roller-type) rear |
|
| 25 |
N 0139755 |
oval head panel screw ST4,8X19 |
|
| 26 |
4A9867434 |
mounting folding cover for boot right |
|
| 27 |
4A9863537A |
bearing bracket left |
|
| 28 |
N 0116644 |
washer B4,3X12X1 |
|
| 29 |
N 01396626 |
oval head panel screw 4,2X13STC |
|
| 3 |
823867299 |
clip |
|
| 30 |
4A9887267 |
tie-down eye |
|
| 31 |
N 0330391 |
oval head countersunk bolt M6X12 |
|
| 32 |
4A9867433A |
trim folding cover for boot left |
|
| 6 |
4A9863467 |
trim for rear cross panel lower |
|
| 7 |
823863203 |
clip |
|
| 8 |
4A9863469 |
luggage comp. floor covering for models with child s seat rework if necessary |
|
| 9 |
4A9863471 |
trim for rear cross panel |
|
