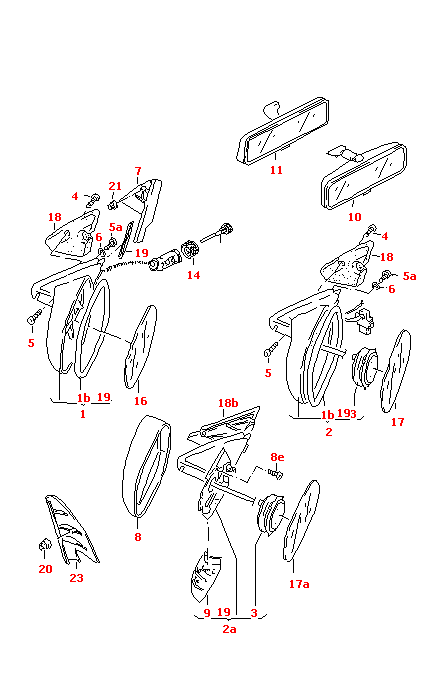

Оригинальный
номер |
Название |
Заказ |
|
443857511 01C |
satin black |
|
|
4A0858523B 3FZ |
schwarz R+S |
|
|
4A0857507 3FZ |
schwarz if necessary paint in color of vehicle |
|
|
4A0857506 BE5 |
anthracite |
|
|
4A0857505 5WK |
anthracite |
|
|
4A9857569 BE5 |
anthracite |
|
|
4A5857570 BE5 |
anthracite |
|
|
4A9857570 BE5 |
anthracite |
|
|
4A1857508 3FZ |
schwarz if necessary paint in color of vehicle |
|
|
4A1858524 3FZ |
schwarz |
|
|
4A5857569 BE5 |
anthracite |
|
|
4D0857511 01C |
satin black |
|
|
4A0858523 3FZ |
schwarz |
|
| (17A) |
4A1857536AB |
mirror glass (convex) heated with carrier plate right |
|
| (17A) |
4A1857535AC |
mirror glass (aspherical- wide angle) heated with carrier plate left |
|
| (18B) |
4A0857544C |
gasket right |
|
| (19) |
4A0857670 |
sealing strip rear view mirror housing |
|
| (23) |
4A9857569 |
trim left rear |
|
| (23) |
4A5857570 |
trim right rear |
|
| (23) |
4A9857570 |
trim right rear |
|
| (2A) |
4A1858531D |
rear view mirror mounting with elec. adjuster unit for vehicles with electric memory seat and backrest adjustment heated for rear view mirror: left |
|
| (2A) |
4A1858532D |
rear view mirror mounting with elec. adjuster unit for vehicles with electric memory seat and backrest adjustment for rear view mirror: right |
|
| (2A) |
4A1858532C |
rear view mirror mounting folding with elec. adjuster unit for vehicles with electric memory seat and backrest adjustment heated for rear view mirror: right |
|
| (2A) |
4A1858531C |
rear view mirror mounting folding with elec. adjuster unit for vehicles with electric memory seat and backrest adjustment heated for rear view mirror: left |
|
| (2A) |
4A1858532B |
rear view mirror mounting folding with elec. adjuster unit heated for rear view mirror: right |
|
| (2A) |
4A1858531B |
rear view mirror mounting folding with elec. adjuster unit heated for rear view mirror: left |
|
| (2A) |
4A1858532 |
rear view mirror mounting with elec. adjuster unit for rear view mirror: right |
|
| (7) |
4A0857506 |
trim right inner |
|
| (8) |
4A1857508 |
cap for rear view mirror for rear view mirror: right |
|
| (9) |
4A0858523B |
trim left |
|
| (9) |
4A1858524 |
trim right |
|
| - |
N 10285301 |
fillister hd. bolt M3X12 |
|
| 10 |
443857511 |
rear view mirror, interior, double-jointed mounting (anti-dazzle) |
|
| 11 |
4D0857511 |
rear view mirror, interior anti-dazzle |
|
| 17A |
4A1857535AA |
mirror glass (flat) heated with carrier plate left |
|
| 18B |
4A0857543C |
gasket left |
|
| 19 |
4A0857669 |
sealing strip rear view mirror housing |
|
| 20 |
4A0867365 |
grommet |
|
| 21 |
4A0867365A |
grommet |
|
| 23 |
4A5857569 |
trim left rear |
|
| 2A |
4A1858531 |
rear view mirror mounting with elec. adjuster unit for rear view mirror: left |
|
| 3 |
4A0959577 |
adjuster with motor for rear view mirror not for models with memory circuit |
|
| 4 |
N 0141335 |
fillister hd. bolt M5X12 |
|
| 5A |
N 0147791 |
allen key head bolt M8X20 |
|
| 6 |
N 0152782 |
washer 8X16X2 |
|
| 7 |
4A0857505 |
trim left inner |
|
| 8 |
4A0857507 |
cap for rear view mirror left |
|
| 8E |
N 90353901 |
oval head countersunk bolt F3X10 |
|
| 9 |
4A0858523 |
trim left |
|
