Оригинальный
номер |
Название |
Заказ |
|
8L0819129 B98 |
satin black |
|
|
8D0820043N B98 |
satin black |
|
|
8L0819129A 01C |
satin black |
|
|
8D0820043P B98 |
satin black |
|
|
8D0820043M B98 |
satin black |
|
|
8D0820043Q B98 |
satin black |
|

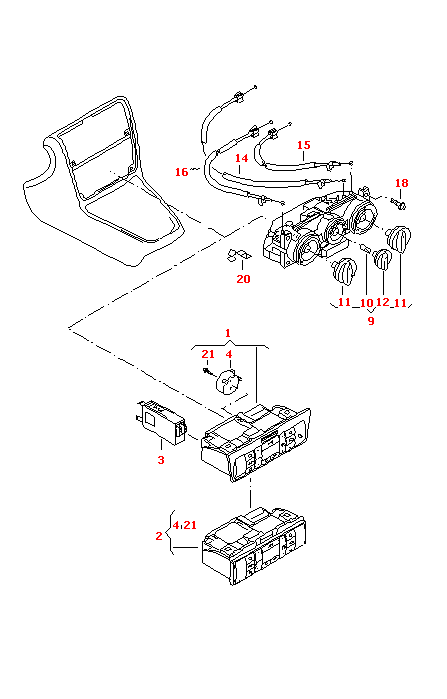

| (1) |
8D0820043P |
display and operating unit with control unit for electr. regulation of air conditioner for vehicles with navigation system and seat, backrest heater element |
|
| (14) |
8D2819831A |
cable for control flap 406MM |
|
| (15) |
8D2819835B |
cable for defroster flap 812MM |
|
| (16) |
8D2819837A |
cable for temp. control flap 400MM |
|
| (2) |
8D0820043N |
display and operating unit with control unit for electr. regulation of air conditioner for vehicles with seat and backrest heater element |
|
| - |
8Z0820535 |
outer temperature sensor |
|
| 1 |
8D0820043Q |
fresh air and heater controls for vehicles with electroni- cally regulated air condit. for vehicles with navigation system |
|
| 10 |
N 90360501 |
bulb 12V2,1W |
|
| 11 |
8L0819129 |
rotary knob 40MM |
|
| 12 |
8L0819129A |
rotary knob 30MM |
|
| 13 |
8L0815911 |
button for fresh or recircula- ted air selection |
|
| 14 |
8D1819831A |
cable for control flap 654MM |
|
| 15 |
8D1819835B |
cable for defroster flap 514MM |
|
| 16 |
8D1819837A |
cable for temp. control flap 572MM |
|
| 18 |
N 0139649 |
oval head panel screw see illustration: ST4,2X16-C |
|
| 2 |
8D0820043M |
display and operating unit with control unit for electr. regulation of air conditioner |
|
| 20 |
823819679 |
clips |
|
| 21 |
N 10435601 |
cable holder A10-6,5XC01-8 |
|
| 4 |
4B0820059 |
fan motor |
|
| 9 |
8L0819045C |
fresh air and heater controls |
|
