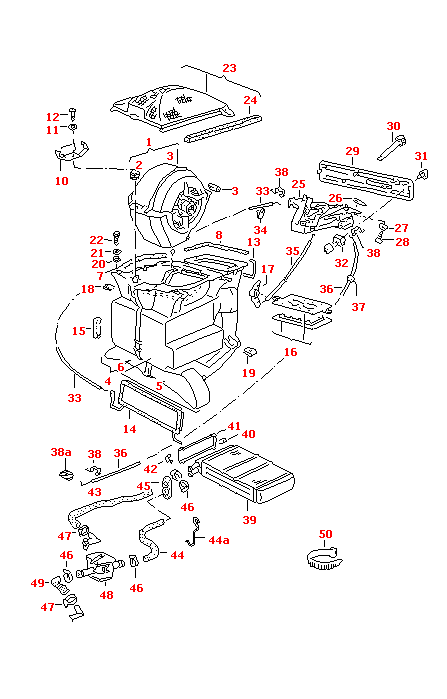

Оригинальный
номер |
Название |
Заказ |
|
811819823C 01C |
satin black |
|
|
171819173 01C |
satin black |
|
|
321819152A 01C |
satin black |
|
|
857819073C 01C |
satin black |
|
|
321819151A 01C |
satin black |
|
|
859820073 01C |
satin black |
|
|
321819129A 01Z |
dark brown (brown) |
|
|
321819645 01C |
satin black |
|
|
321819123B 01C |
satin black |
|
| (25) |
811819045A |
fresh air and heater controls |
|
| (26) |
N 0154531 |
snap nut B4,2X13,9X12,7 |
|
| (29) |
857819073C |
trim for fresh air and heater controls F 85-F-900 001>> |
|
| (29) |
859820073 |
trim for fresh air and heater controls |
|
| (30) |
811819823C |
knob F 85-E-900 001>> |
|
| (33) |
859819839 |
cable for control flap |
|
| (36) |
811819837E |
cable for heater valve F 85-E-900 001>> |
|
| (43) |
859819371 |
water hose |
|
| (44) |
857819375 |
water hose F 85-L-000 001>> |
|
| (44) |
859819375 |
water hose |
|
| (48) |
811819809 |
heater valve |
|
| (49) |
857819375A |
water hose F 85-L-000 001>>* |
|
| (50) |
N 90666101 |
cable tie 4,5X200 |
|
| - |
859959505 |
switch for blower motor |
|
| 1 |
251819015 |
electric fan motor |
|
| 10 |
321971280 |
bracket for resistance |
|
| 11 |
N 0116653 |
washer 5,3X15X1,6 |
|
| 12 |
N 0139649 |
oval head panel screw ST4,2X16-C |
|
| 13 |
823819079 |
arm |
|
| 14 |
321819361A |
control flap |
|
| 15 |
321819645 |
mounting clip |
|
| 16 |
321819097A |
locking flap |
|
| 17 |
321819123B |
lever for locking flap |
|
| 18 |
N 0154231 |
snap nut B5,5X26,6X20,4 |
|
| 19 |
N 0154581 |
snap nut B4,8X19X16 |
|
| 2 |
321819063 |
grommet 13/9 |
|
| 20 |
N 01166615 |
washer 6,4X18X1,6 |
|
| 21 |
803955637 |
sealing washer |
|
| 22 |
N 0139481 |
oval head panel screw B5,5X25 |
|
| 23 |
321819083 |
foliage grille |
|
| 24 |
321819143A |
gasket |
|
| 26 |
N 0154421 |
snap nut B4,2X12,8X11 |
|
| 27 |
N 0116653 |
washer 5,3X15X1,6 |
|
| 28 |
N 01396626 |
oval head panel screw 4,2X13STC |
|
| 29 |
855819073B |
trim for fresh air and heater controls F 85-D-900 582>> 85-D-902 500 |
|
| 3 |
321819064 |
bearing rear |
|
| 30 |
321819129A |
knob F >> 85-D-902 500 |
|
| 31 |
321959513B |
knob for switch 21MM |
|
| 32 |
171959511 |
switch for blower motor |
|
| 33 |
811819839 |
cable for control flap 460MM |
|
| 34 |
811819859A |
clips |
|
| 35 |
811819836 |
locking flap cable 830MM |
|
| 36 |
811819837C |
cable for heater valve F >> 85-D-902 500 |
|
| 37 |
803959843 |
grommet 12,5/4 |
|
| 38 |
811819679 |
spring clamp supplied alternatively: |
|
| 38A |
811819145A |
clips |
|
| 39 |
171819031E |
heat exchanger |
|
| 4 |
811819014A |
flap box |
|
| 40 |
7D0819069 |
gasket 810X25X6 |
|
| 41 |
171819173 |
cap for heat exchanger |
|
| 42 |
321819059 |
clips |
|
| 43 |
321819371E |
water hose |
|
| 44 |
321819375D |
water hose F >> 85-K-020 000* |
|
| 44A |
859819379 |
retainer |
|
| 45 |
861819699A |
double grommet |
|
| 46 |
N 90561801 |
pipe clip AL16-28 |
|
| 47 |
N 10258101 |
pipe clip AL23-35 |
|
| 48 |
171819809E |
heater valve |
|
| 5 |
321819151A |
air guide left |
|
| 50 |
N 0209022 |
cable tie 6X246 |
|
| 6 |
321819152A |
air guide right |
|
| 7 |
321819089 |
gasket |
|
| 79 |
855819375E |
water hose F >> 85-K-020 000 |
|
| 8 |
321819018 |
gasket |
|
| 9 |
321819017 |
gasket 680X8X10 |
|
| c |
855819073B 01Z |
dark brown (brown) |
|
