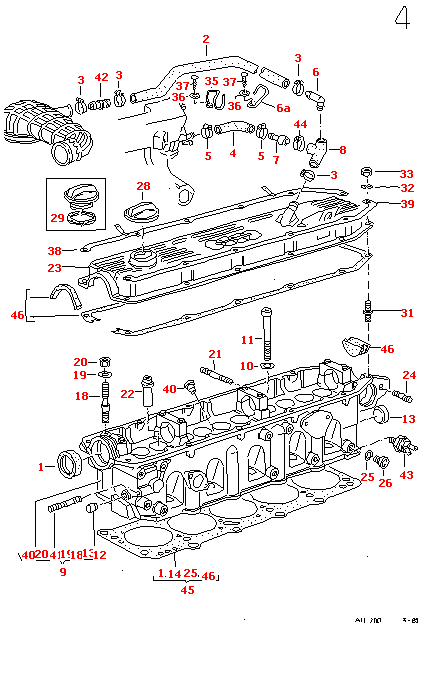

Оригинальный
номер |
Название |
Заказ |
| (22) |
056103419A |
valve guide F >> 43A 0200 000 36,5MM/8MM |
|
| (24) |
N 90139301 |
stud F 43-B-000 001>> M8X20 |
|
| (35) |
035103497 |
holder for vacuum hose F >> 43A 0200 000 |
|
| (39) |
035103591A |
strip F >> 43A 0200 000 |
|
| (46) |
035198025D |
set of gaskets for cylinder head cover for stud with shoulder F >> 43A 0200 000 |
|
| (46) |
034198025D |
set of gaskets for cylinder head cover F 43-B-000 001>> |
|
| (9) |
035103351BC |
cylinder head F 43-B-000 001>> also use: |
|
| - |
063133555A |
insert for injector |
|
| - |
035103265JX |
cylinder head with valves and camshaft M WK 004 646>>* M WJ 007 852>>* |
|
| 1 |
068103085E |
oil seal 47X10 |
|
| 10 |
056103377 |
washer |
|
| 11 |
049103385 |
bolt, with multi-spilne socket head M11X1,5X98 |
|
| 12 |
056103379 |
plug 7,4 |
|
| 13 |
N 0119142 |
locking cover 24 |
|
| 14 |
035103383J |
cylinder head gasket |
|
| 18 |
056103397 |
stud M8X56 |
|
| 19 |
N 01155811 |
washer 8,4X15X1,6 |
|
| 2 |
035103221F |
breather hose A17,5X3,5X440 |
|
| 20 |
N 01100830 |
hexagonal nut M8 |
|
| 21 |
N 0444115 |
stud M8X30 |
|
| 22 |
049103419 |
valve guide F 43-B-000 001>> 42,5MM |
|
| 23 |
035103469S |
cylinder head cover F 43-B-000 001>> |
|
| 24 |
N 0444082 |
stud F >> 43A 0200 000 M8X25 |
|
| 25 |
N 0138115 |
seal A10X13,5 |
|
| 26 |
N 0160241 |
sealing plug M10X1 |
|
| 28 |
06B103485B |
locking cover |
|
| 29 |
06A103483D |
gasket F >> 43-B-110 000 |
|
| 3 |
N 90561801 |
pipe clip AL16-28 |
|
| 31 |
026103400A |
stud with shoulder M6X25/M6X14 |
|
| 32 |
N 0122265 |
spring washer B6X12X0,5 |
|
| 33 |
N 01100624 |
hexagonal nut M6 |
|
| 36 |
N 0116521 |
washer 7X12X1,2 |
|
| 37 |
N 0141395 |
fillister hd. bolt M6X12 |
|
| 38 |
035103589D |
strip F 43-B-000 001>> |
|
| 39 |
035103591D |
strip F 43-B-000 001>> |
|
| 40 |
035103643B |
oil spray jet |
|
| 41 |
N 0443981 |
stud M6X48 |
|
| 42 |
035133793 |
connecting piece |
|
| 43 |
055131851C |
thermo-pneumatic valve |
|
| 44 |
N 10258101 |
pipe clip AL23-35 |
|
| 45 |
035198012K |
gasket set for cylinder head F 43-B-000 001>> |
|
| 5 |
N 10258201 |
pipe clip AL12-22 |
|
| 6 |
035103229 |
connection piece |
|
| 7 |
035103245A |
bleeder valve |
|
| 8 |
035103247A |
valve housing |
|
| 9 |
035103351E |
cylinder head F >> 43A 0200 000 |
|
