Оригинальный
номер |
Название |
Заказ |

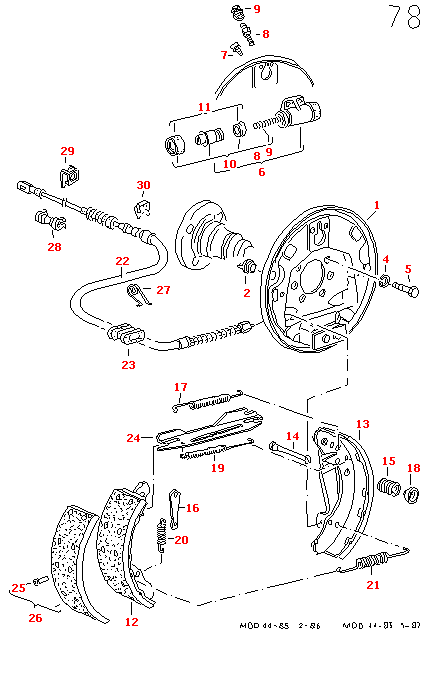

| (1) |
4A0609440 |
back plate right |
|
| (12) |
357609526C |
brake shoe with lining and adjustment wedge (asbestos free) right |
|
| (13) |
357609528E |
brake shoe with lining and brake lever (asbestos free) right |
|
| (17) |
357609711B |
tension spring F 44-K-150 001>> upper |
|
| (24) |
431609820 |
push rod F >> 44-K-150 000 right |
|
| (24) |
357609820A |
push rod F 44-K-150 001>> right |
|
| (24) |
357609819A |
push rod F 44-K-150 001>> left |
|
| - |
G 052150A2 |
lithium-grease 180G |
|
| - |
357698525CX |
1 set: brake shoes with linings (asbestos free) 230X40 |
|
| - |
3A0698545A |
1 set: securing parts for brake pads F >> 44-K-150 000 230X40MM |
|
| 1 |
4A0609439 |
back plate left |
|
| 12 |
357609525C |
brake shoe with lining and adjustment wedge (asbestos free) left |
|
| 13 |
357609527E |
brake shoe with lining and brake lever (asbestos free) left |
|
| 14 |
431609579 |
spring pin 29MM |
|
| 15 |
171609583A |
pressure spring |
|
| 16 |
171609705 |
adjustment wedge |
|
| 17 |
431609711 |
tension spring F >> 44-K-150 000 upper |
|
| 18 |
171609709 |
spring disc |
|
| 19 |
357609707B |
tension spring |
|
| 2 |
171609163 |
plug 12X2MM |
|
| 20 |
431609715 |
tension spring |
|
| 21 |
171609717 |
tension spring lower |
|
| 22 |
443609721K |
brake cable |
|
| 24 |
431609819 |
push rod F >> 44-K-150 000 left |
|
| 25 |
N 0136331 |
rivet C4X8 |
|
| 26 |
443698071 |
1 set: brake linings for drum brakes 230X40X5 |
|
| 27 |
443609735B |
bracket for brake cable |
|
| 28 |
4A0711311 |
bush |
|
| 29 |
443711315A |
clip |
|
| 30 |
N 90052702 |
lock washer 8 |
|
| 4 |
N 01155811 |
washer 8,4X15X1,6 |
|
| 5 |
N 01024118 |
hexagonal head bolt M8X22 |
|
| 6 |
6N0611053 |
wheel brake cylinder 17,46 FAG |
|
| 7 |
N 0147506 |
allen key head bolt use if required: M6X10 |
|
| 8 |
211611477A |
bleeder valve M6X28 |
|
| 9 |
211611483 |
dust cap |
|
