Оригинальный номер |
Название |
Заказ |

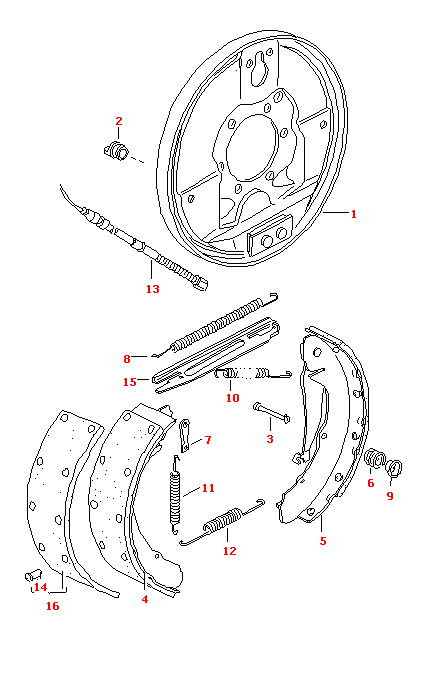

(1) |
4A0609439 |
back plate left |
|
(1) |
4A0609440 |
back plate right |
|
(10) |
331609711 |
tension spring upper |
|
(11) |
171609715 |
tension spring |
|
(15) |
431609820 |
push rod right |
|
(15) |
331609820A |
push rod right |
|
(15) |
331609819A |
push rod left |
|
(16) |
443698071 |
1 set: brake linings for drum brakes 230X40X5 |
|
(3) |
6N0609579 |
spring pin 40MM |
|
(4) |
1H0609525D |
brake shoe with lining left |
|
(4) |
443609526A |
brake shoe with lining and adjustment wedge right |
|
(4) |
1H0609526D |
brake shoe with lining right |
|
(5) |
443609528A |
brake shoe with lining and brake lever right |
|
(5) |
811609528E |
brake shoe with lining and brake lever right |
|
(5) |
811609527E |
brake shoe with lining and brake lever left |
|
(8) |
357609707B |
tension spring |
|
- |
3A0698545A |
1 set: securing parts for brake pads 230X40MM |
|
- |
1H0698545A |
1 set: securing parts for brake pads 200X40MM |
|
- |
811698525AX |
1 set: brake shoes with linings 200X40 |
|
- |
431609735 |
retainer left |
|
- |
357698525CX |
1 set: brake shoes with linings 230X40 |
|
10 |
431609711 |
tension spring upper |
|
11 |
431609715 |
tension spring |
|
12 |
171609717 |
tension spring lower |
|
13 |
431609721D |
brake cable also use: |
|
14 |
N 0136331 |
rivet C4X8 |
|
15 |
431609819 |
push rod left |
|
16 |
1H0698071 |
1 set: brake linings for drum brakes 200X40X5 |
|
2 |
171609163 |
plug 12X2MM |
|
3 |
431609579 |
spring pin 29MM |
|
4 |
443609525A |
brake shoe with lining and adjustment wedge left |
|
5 |
443609527A |
brake shoe with lining and brake lever left |
|
6 |
171609583A |
pressure spring |
|
7 |
171609705 |
adjustment wedge |
|
8 |
331609707 |
tension spring |
|
9 |
171609709 |
spring disc |
|
