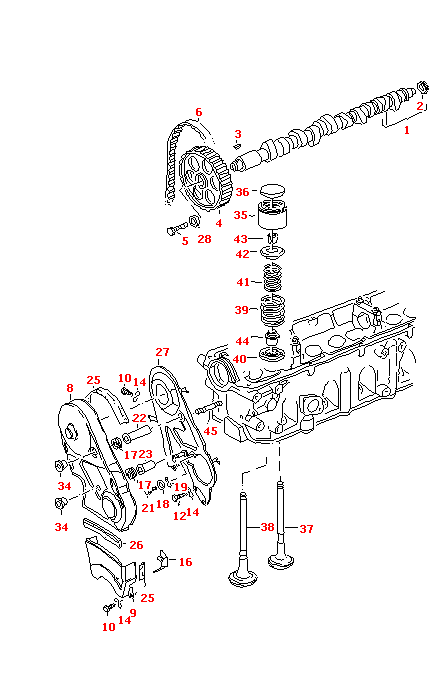

Оригинальный
номер |
Название |
Заказ |
| (1) |
034109021K |
camshaft |
|
| (1) |
034109021P |
camshaft |
|
| (35) |
034109309AD |
cam follower |
|
| (36) |
056109574 |
adjusting washer 3,95 |
|
| (36) |
056109571 |
adjusting washer 3,8 |
|
| (36) |
056109569 |
adjusting washer 3,7 |
|
| (36) |
056109568 |
adjusting washer 3,65 |
|
| (36) |
056109567 |
adjusting washer 3,6 |
|
| (36) |
056109566 |
adjusting washer 3,55 |
|
| (36) |
056109565 |
adjusting washer 3,5 |
|
| (36) |
056109564 |
adjusting washer 3,45 |
|
| (36) |
056109570 |
adjusting washer 3,75 |
|
| (36) |
056109562 |
adjusting washer 3,35 |
|
| (36) |
056109572 |
adjusting washer 3,85 |
|
| (36) |
056109573 |
adjusting washer 3,9 |
|
| (36) |
056109563 |
adjusting washer 3,4 |
|
| (36) |
056109575 |
adjusting washer 4 |
|
| (36) |
056109576 |
adjusting washer 4,05 |
|
| (36) |
056109577 |
adjusting washer 4,1 |
|
| (36) |
056109578 |
adjusting washer 4,15 |
|
| (36) |
056109579 |
adjusting washer 4,2 |
|
| (36) |
056109580 |
adjusting washer 4,25 |
|
| (37) |
035109601K |
intake valve 91,9 |
|
| (37) |
035109601F |
intake valve 98,7 |
|
| (37) |
035109603 |
intake valve 98,2 |
|
| (38) |
035109613 |
exhaust valve 98 |
|
| (38) |
035109611F |
exhaust valve 98,5 |
|
| (4) |
034109111A |
toothed belt pulley |
|
| (6) |
034109119 |
toothed belt F 44-E-000 001>> |
|
| (6) |
074109119 |
toothed belt F >> 44-D-200 000 142 Z. |
|
| - |
N 01167016 |
washer 8,4X24X2 |
|
| 10 |
N 01021527 |
hexagonal head bolt M6X15 |
|
| 12 |
N 0103467 |
hexagonal head bolt M6X30 |
|
| 14 |
N 0122265 |
spring washer B6X12X0,5 |
|
| 16 |
069109141 |
bracket for toothed belt cover |
|
| 17 |
056129669B |
grommet |
|
| 2 |
035109109 |
drive gear forignition distributor |
|
| 21 |
N 0102478 |
hexagonal head bolt also use: M8X35 |
|
| 22 |
035109135C |
spacer tube |
|
| 23 |
035109135B |
spacer tube |
|
| 25 |
069109139B |
gasket 760MM |
|
| 26 |
069109140 |
gasket B4,1X10,2X0,9 |
|
| 27 |
035109143 |
cover panel |
|
| 28 |
056109143 |
washer 12,5X28X6 |
|
| 3 |
N 0127082 |
woodruff key 4X5 |
|
| 34 |
049109207 |
shouldered nut with socket M6 |
|
| 35 |
056109311A |
cam follower |
|
| 36 |
056109561 |
adjusting washer 3,3 |
|
| 38 |
053109611 |
exhaust valve 91,2 |
|
| 39 |
078109623A |
spring - valve outer |
|
| 4 |
049109111C |
toothed belt pulley |
|
| 40 |
056109629A |
spring disc lower |
|
| 41 |
078109633A |
spring - valve inner |
|
| 42 |
049109641A |
spring disc upper |
|
| 43 |
113109651A |
cotter, split |
|
| 44 |
026109675 |
seal - valve stem 8MM |
|
| 45 |
N 0443981 |
stud |
|
| 5 |
N 0101371 |
hexagonal head bolt M12X1,5X35 |
|
| 6 |
035109119 |
toothed belt F >> 44-D-200 000 |
|
| 8 |
073109108 |
toothed belt cover upper |
|
| 9 |
069109110 |
toothed belt cover lower |
|
