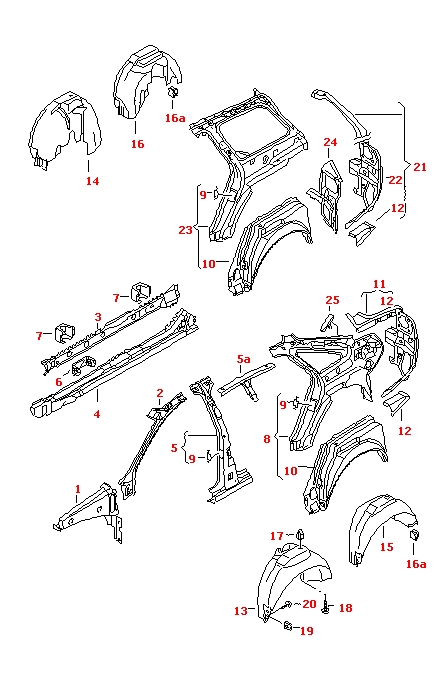

Оригинальный
номер |
Название |
Заказ |
| (1) |
4Z7809110 |
reinforcement part - wheel housing / pillar a right |
|
| (10) |
4Z7809409 |
wheel housingliner left outer |
|
| (10) |
4Z7809410 |
wheel housingliner right outer |
|
| (12) |
4B0809348A |
filler plate for side panel right rear |
|
| (15) |
4Z7810171 |
wheel housing-plastic material left rear |
|
| (16) |
4Z7810172 |
wheel housing-plastic material right rear |
|
| (2) |
4B9810180B |
a-pillar, inner right upper |
|
| (2) |
4B9810179B |
a-pillar, inner left upper |
|
| (21) |
4B9810416B |
insert plate d-pillar right rear |
|
| (21) |
4B9810415B |
insert plate d-pillar left rear |
|
| (22) |
4B9809649C |
insert plate light left rear |
|
| (22) |
4B9809650C |
insert plate light right rear |
|
| (23) |
4Z7810182A |
side panel frame right rear |
|
| (23) |
4Z7810181A |
side panel frame left rear |
|
| (24) |
4B9809289D |
d-pillar left lower |
|
| (24) |
4B9809290D |
d-pillar right lower |
|
| (3) |
4B0803764C |
rip plate for side member right |
|
| (4) |
4Z7809756 |
reinforcement for side member right |
|
| (5) |
4B0809224H |
b-pillar, inner right |
|
| (5) |
4B0809223H |
b-pillar, inner left |
|
| (7) |
4B0803753B |
support plate seat support left a. right |
|
| - |
D 000111A2 |
2k-insert foam |
|
| - |
4B0807513 |
spoiler F >> 4B-1-200 000 left inner |
|
| - |
N 90708801 |
panel nut AM5 |
|
| - |
4B0807513A |
spoiler F 4B-2-000 001>> left inner |
|
| - |
N 90775001 |
torx socket head panel screw 4,8X16 |
|
| 1 |
4Z7809109 |
reinforcement part - wheel housing / pillar a left |
|
| 12 |
4B0809347 |
filler plate for side panel left rear |
|
| 16A |
N 0154373 |
snap nut also use: B4,8X16,5X11 |
|
| 17 |
N 90821401 |
expanding nut D4,8 |
|
| 18 |
N 90775001 |
torx socket head panel screw 4,8X16 |
|
| 19 |
N 10194101 |
snap nut ST4,8X18,6X16 |
|
| 20 |
N 90250001 |
oval head panel screw E4,8X16X10 |
|
| 3 |
4B0803763C |
rip plate for side member left |
|
| 4 |
4Z7809755 |
reinforcement for side member left |
|
| 6 |
4B0809697 |
filler plate front |
|
| 7 |
4B0803753A |
support plate seat support left a. right |
|
| 9 |
4B0809237A |
threaded plate b/c-pillar left/right |
|
